第十四章 文件系统 最后的挑战(下)

本文最后更新于：1 年前

第十四章 文件系统 最后的挑战(下)

写在前面

由于代码长度增加，使得编辑器卡顿，所以这一章代码如果只是新增函数，我就只把新增的部分写出来了。

文件的读取

fs/file.c新增

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
/* 从文件file中读取count个字节写入buf, 返回读出的字节数,若到文件尾则返回-1 */
int32_t file_read(struct file* file, void* buf, uint32_t count) {
   uint8_t* buf_dst = (uint8_t*)buf;
   uint32_t size = count, size_left = size;

   /* 若要读取的字节数超过了文件可读的剩余量, 就用剩余量做为待读取的字节数 */
   if ((file->fd_pos + count) > file->fd_inode->i_size)	{
      size = file->fd_inode->i_size - file->fd_pos;
      size_left = size;
      if (size == 0) {	   // 若到文件尾则返回-1
	 return -1;
      }
   }

   uint8_t* io_buf = sys_malloc(BLOCK_SIZE);
   if (io_buf == NULL) {
      printk("file_read: sys_malloc for io_buf failed\n");
   }
   uint32_t* all_blocks = (uint32_t*)sys_malloc(BLOCK_SIZE + 48);	  // 用来记录文件所有的块地址
   if (all_blocks == NULL) {
      printk("file_read: sys_malloc for all_blocks failed\n");
      return -1;
   }

   uint32_t block_read_start_idx = file->fd_pos / BLOCK_SIZE;		       // 数据所在块的起始地址
   uint32_t block_read_end_idx = (file->fd_pos + size) / BLOCK_SIZE;	       // 数据所在块的终止地址
   uint32_t read_blocks = block_read_start_idx - block_read_end_idx;	       // 如增量为0,表示数据在同一扇区
   ASSERT(block_read_start_idx < 139 && block_read_end_idx < 139);

   int32_t indirect_block_table;       // 用来获取一级间接表地址
   uint32_t block_idx;		       // 获取待读的块地址

/* 以下开始构建all_blocks块地址数组,专门存储用到的块地址(本程序中块大小同扇区大小) */
   if (read_blocks == 0) {       // 在同一扇区内读数据,不涉及到跨扇区读取
      ASSERT(block_read_end_idx == block_read_start_idx);
      if (block_read_end_idx < 12 ) {	   // 待读的数据在12个直接块之内
	 block_idx = block_read_end_idx;
	 all_blocks[block_idx] = file->fd_inode->i_sectors[block_idx];
      } else {		// 若用到了一级间接块表,需要将表中间接块读进来
	 indirect_block_table = file->fd_inode->i_sectors[12];
	 ide_read(cur_part->my_disk, indirect_block_table, all_blocks + 12, 1);
      }
   } else {      // 若要读多个块
   /* 第一种情况: 起始块和终止块属于直接块*/
      if (block_read_end_idx < 12 ) {	  // 数据结束所在的块属于直接块
	 block_idx = block_read_start_idx;
	 while (block_idx <= block_read_end_idx) {
	    all_blocks[block_idx] = file->fd_inode->i_sectors[block_idx];
	    block_idx++;
	 }
      } else if (block_read_start_idx < 12 && block_read_end_idx >= 12) {
   /* 第二种情况: 待读入的数据跨越直接块和间接块两类*/
       /* 先将直接块地址写入all_blocks */
	 block_idx = block_read_start_idx;
	 while (block_idx < 12) {
	    all_blocks[block_idx] = file->fd_inode->i_sectors[block_idx];
	    block_idx++;
	 }
	 ASSERT(file->fd_inode->i_sectors[12] != 0);	    // 确保已经分配了一级间接块表

      /* 再将间接块地址写入all_blocks */
	 indirect_block_table = file->fd_inode->i_sectors[12];
	 ide_read(cur_part->my_disk, indirect_block_table, all_blocks + 12, 1);	      // 将一级间接块表读进来写入到第13个块的位置之后
      } else {
   /* 第三种情况: 数据在间接块中*/
	 ASSERT(file->fd_inode->i_sectors[12] != 0);	    // 确保已经分配了一级间接块表
	 indirect_block_table = file->fd_inode->i_sectors[12];	      // 获取一级间接表地址
	 ide_read(cur_part->my_disk, indirect_block_table, all_blocks + 12, 1);	      // 将一级间接块表读进来写入到第13个块的位置之后
      }
   }

   /* 用到的块地址已经收集到all_blocks中,下面开始读数据 */
   uint32_t sec_idx, sec_lba, sec_off_bytes, sec_left_bytes, chunk_size;
   uint32_t bytes_read = 0;
   while (bytes_read < size) {	      // 直到读完为止
      sec_idx = file->fd_pos / BLOCK_SIZE;
      sec_lba = all_blocks[sec_idx];
      sec_off_bytes = file->fd_pos % BLOCK_SIZE;
      sec_left_bytes = BLOCK_SIZE - sec_off_bytes;
      chunk_size = size_left < sec_left_bytes ? size_left : sec_left_bytes;	     // 待读入的数据大小

      memset(io_buf, 0, BLOCK_SIZE);
      ide_read(cur_part->my_disk, sec_lba, io_buf, 1);
      memcpy(buf_dst, io_buf + sec_off_bytes, chunk_size);

      buf_dst += chunk_size;
      file->fd_pos += chunk_size;
      bytes_read += chunk_size;
      size_left -= chunk_size;
   }
   sys_free(all_blocks);
   sys_free(io_buf);
   return bytes_read;
}

fs/fs.c新增

1
2
3
4
5
6
7
8
9
10

int32_t sys_read(int32_t fd, void* buf, uint32_t count) {
	if(fd<0){
		printk("sys_read: fd error\n");
		return -1;
	}
	ASSERT(buf != NULL);
	uint32_t _fd = fd_local2global(fd);
	return file_read(&file_table[_fd], buf, count);
}

kernel/main.c修改

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
#include "print.h"
#include "init.h"
#include "debug.h"
#include "string.h"
#include "memory.h"
#include "../thread/thread.h"
#include "interrupt.h"
#include "../device/console.h"
#include "../device/ioqueue.h"
#include "../device/keyboard.h"
#include "../userprog/process.h"
#include "../lib/user/syscall.h"
#include "../userprog/syscall-init.h"
#include "../lib/stdio.h"
#include "../lib/kernel/stdio-kernel.h"
#include "../fs/fs.h"
#include "../fs/file.h"

int main(void) {
	put_str("I am kernel\n");
	init_all();

	intr_enable();


	uint32_t fd = sys_open("/file1",O_RDWR);
	printf("open /file1,fd:%d\n", fd);
	char buf[64] = {0};
	int read_bytes = sys_read(fd, buf, 18);
	printf("1_ read %d bytes:\n%s\n", read_bytes, buf);

	memset(buf, 0, 64);
	read_bytes = sys_read(fd, buf, 6);
	printf("2_ read %d bytes:\n%s", read_bytes, buf);


	memset(buf, 0, 64);
	read_bytes = sys_read(fd, buf, 6);
	printf("3_ read %d bytes:\n%s", read_bytes, buf);

	printf("_____ close file1 and reopen ______\n");
	sys_close(fd);


	fd = sys_open("/file1",O_RDWR);
	memset(buf, 0, 64);
	read_bytes = sys_read(fd, buf, 24);
	printf("4_ read %d bytes:\n%s", read_bytes, buf);
	sys_close(fd);

	while(1);
   	return 0;
}

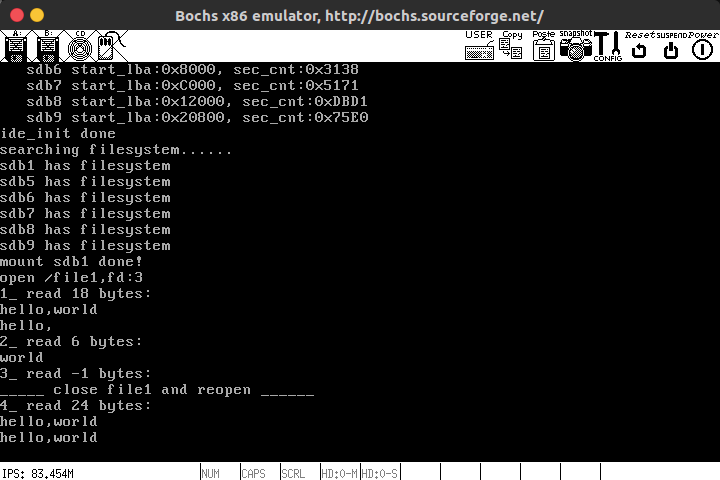

运行结果

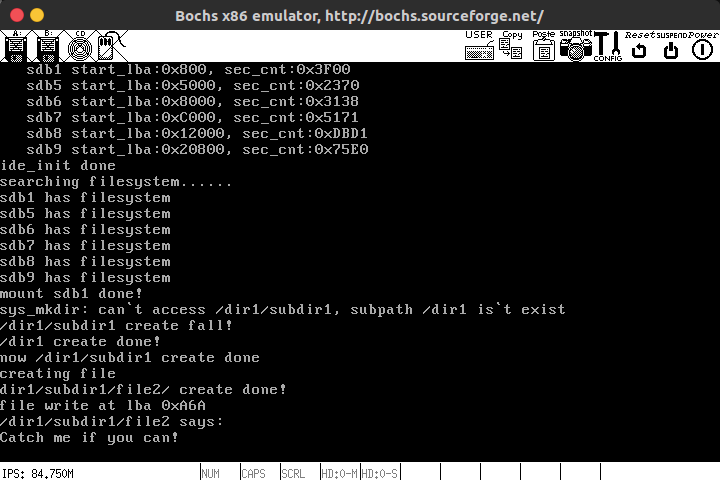

图为bochs运行界面

实现文件读写指针定位功能

fs/fs.h新增

1
2
3
4
5
6
/* 文件读写位置偏移量 */
enum whence {
   SEEK_SET = 1,
   SEEK_CUR,
   SEEK_END
};

fs/fs.c新增

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
/* 重置用于文件读写操作的偏移指针,成功时返回新的偏移量,出错时返回-1 */
int32_t sys_lseek(int32_t fd, int32_t offset, uint8_t whence) {
   if (fd < 0) {
      printk("sys_lseek: fd error\n");
      return -1;
   }
   ASSERT(whence > 0 && whence < 4);
   uint32_t _fd = fd_local2global(fd);
   struct file* pf = &file_table[_fd];
   int32_t new_pos = 0;   //新的偏移量必须位于文件大小之内
   int32_t file_size = (int32_t)pf->fd_inode->i_size;
   switch (whence) {
      /* SEEK_SET 新的读写位置是相对于文件开头再增加offset个位移量 */
      case SEEK_SET:
	 new_pos = offset;
	 break;

      /* SEEK_CUR 新的读写位置是相对于当前的位置增加offset个位移量 */
      case SEEK_CUR:	// offse可正可负
	 new_pos = (int32_t)pf->fd_pos + offset;
	 break;

      /* SEEK_END 新的读写位置是相对于文件尺寸再增加offset个位移量 */
      case SEEK_END:	   // 此情况下,offset应该为负值
	 new_pos = file_size + offset;
   }
   if (new_pos < 0 || new_pos > (file_size - 1)) {
      return -1;
   }
   pf->fd_pos = new_pos;
   return pf->fd_pos;
}

kernel/main.c修改

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
#include "print.h"
#include "init.h"
#include "debug.h"
#include "string.h"
#include "memory.h"
#include "../thread/thread.h"
#include "interrupt.h"
#include "../device/console.h"
#include "../device/ioqueue.h"
#include "../device/keyboard.h"
#include "../userprog/process.h"
#include "../lib/user/syscall.h"
#include "../userprog/syscall-init.h"
#include "../lib/stdio.h"
#include "../lib/kernel/stdio-kernel.h"
#include "../fs/fs.h"
#include "../fs/file.h"

int main(void) {
	put_str("I am kernel\n");
	init_all();

	intr_enable();

	uint32_t fd = sys_open("/file1",O_RDWR);
	printf("open /file1,fd:%d\n", fd);
	char buf[64] = {0};
	int read_bytes = sys_read(fd, buf, 18);
	printf("1_ read %d bytes:\n%s\n", read_bytes, buf);

	memset(buf, 0, 64);
	read_bytes = sys_read(fd, buf, 6);
	printf("2_ read %d bytes:\n%s", read_bytes, buf);


	memset(buf, 0, 64);
	read_bytes = sys_read(fd, buf, 6);
	printf("3_ read %d bytes:\n%s", read_bytes, buf);



	//fd = sys_open("/file1",O_RDWR);
	printf("_____ SEEK_SET 0 ______\n");
	sys_lseek(fd, 0 ,SEEK_SET);
	memset(buf, 0, 64);
	read_bytes = sys_read(fd, buf, 24);
	printf("4_ read %d bytes:\n%s", read_bytes, buf);
	sys_close(fd);

	while(1);
   	return 0;
}

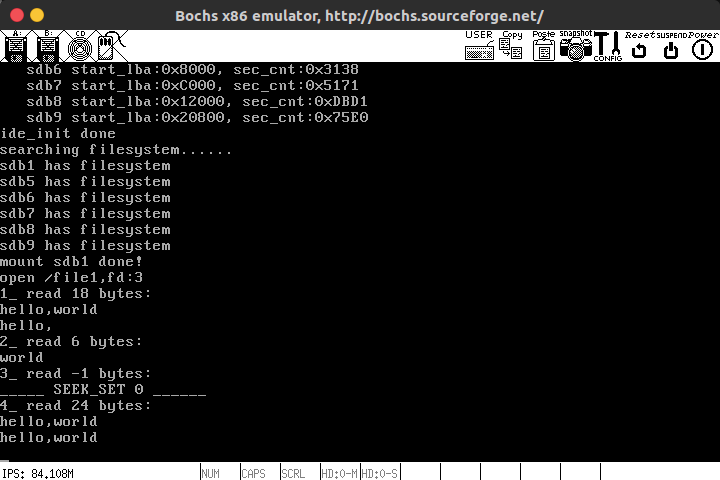

运行结果

图为bochs运行界面

文件的删除

fs/inode.c新增

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
/* 将硬盘分区part上的inode清空 */
void inode_delete(struct partition* part, uint32_t inode_no, void* io_buf) {
   ASSERT(inode_no < 4096);
   struct inode_position inode_pos;
   inode_locate(part, inode_no, &inode_pos);     // inode位置信息会存入inode_pos
   ASSERT(inode_pos.sec_lba <= (part->start_lba + part->sec_cnt));

   char* inode_buf = (char*)io_buf;
   if (inode_pos.two_sec) {   // inode跨扇区,读入2个扇区
      /* 将原硬盘上的内容先读出来 */
      ide_read(part->my_disk, inode_pos.sec_lba, inode_buf, 2);
      /* 将inode_buf清0 */
      memset((inode_buf + inode_pos.off_size), 0, sizeof(struct inode));
      /* 用清0的内存数据覆盖磁盘 */
      ide_write(part->my_disk, inode_pos.sec_lba, inode_buf, 2);
   } else {    // 未跨扇区,只读入1个扇区就好
      /* 将原硬盘上的内容先读出来 */
      ide_read(part->my_disk, inode_pos.sec_lba, inode_buf, 1);
      /* 将inode_buf清0 */
      memset((inode_buf + inode_pos.off_size), 0, sizeof(struct inode));
      /* 用清0的内存数据覆盖磁盘 */
      ide_write(part->my_disk, inode_pos.sec_lba, inode_buf, 1);
   }
}

/* 回收inode的数据块和inode本身 */
void inode_release(struct partition* part, uint32_t inode_no) {
   struct inode* inode_to_del = inode_open(part, inode_no);
   ASSERT(inode_to_del->i_no == inode_no);

/* 1 回收inode占用的所有块 */
   uint8_t block_idx = 0, block_cnt = 12;
   uint32_t block_bitmap_idx;
   uint32_t all_blocks[140] = {0};	  //12个直接块+128个间接块

   /* a 先将前12个直接块存入all_blocks */
   while (block_idx < 12) {
      all_blocks[block_idx] = inode_to_del->i_sectors[block_idx];
      block_idx++;
   }

   /* b 如果一级间接块表存在,将其128个间接块读到all_blocks[12~], 并释放一级间接块表所占的扇区 */
   if (inode_to_del->i_sectors[12] != 0) {
      ide_read(part->my_disk, inode_to_del->i_sectors[12], all_blocks + 12, 1);
      block_cnt = 140;

      /* 回收一级间接块表占用的扇区 */
      block_bitmap_idx = inode_to_del->i_sectors[12] - part->sb->data_start_lba;
      ASSERT(block_bitmap_idx > 0);
      bitmap_set(&part->block_bitmap, block_bitmap_idx, 0);
      bitmap_sync(cur_part, block_bitmap_idx, BLOCK_BITMAP);
   }

   /* c inode所有的块地址已经收集到all_blocks中,下面逐个回收 */
   block_idx = 0;
   while (block_idx < block_cnt) {
      if (all_blocks[block_idx] != 0) {
	 block_bitmap_idx = 0;
	 block_bitmap_idx = all_blocks[block_idx] - part->sb->data_start_lba;
	 ASSERT(block_bitmap_idx > 0);
	 bitmap_set(&part->block_bitmap, block_bitmap_idx, 0);
	 bitmap_sync(cur_part, block_bitmap_idx, BLOCK_BITMAP);
      }
      block_idx++;
   }

/*2 回收该inode所占用的inode */
   bitmap_set(&part->inode_bitmap, inode_no, 0);
   bitmap_sync(cur_part, inode_no, INODE_BITMAP);

   /******     以下inode_delete是调试用的    ******
   * 此函数会在inode_table中将此inode清0,
   * 但实际上是不需要的,inode分配是由inode位图控制的,
   * 硬盘上的数据不需要清0,可以直接覆盖*/
   void* io_buf = sys_malloc(1024);
   inode_delete(part, inode_no, io_buf);
   sys_free(io_buf);
   /***********************************************/

   inode_close(inode_to_del);
}

fs/dir.c新增

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
/* 把分区part目录pdir中编号为inode_no的目录项删除 */
bool delete_dir_entry(struct partition* part, struct dir* pdir, uint32_t inode_no, void* io_buf) {
   struct inode* dir_inode = pdir->inode;
   uint32_t block_idx = 0, all_blocks[140] = {0};
   /* 收集目录全部块地址 */
   while (block_idx < 12) {
      all_blocks[block_idx] = dir_inode->i_sectors[block_idx];
      block_idx++;
   }
   if (dir_inode->i_sectors[12]) {
      ide_read(part->my_disk, dir_inode->i_sectors[12], all_blocks + 12, 1);
   }

   /* 目录项在存储时保证不会跨扇区 */
   uint32_t dir_entry_size = part->sb->dir_entry_size;
   uint32_t dir_entrys_per_sec = (SECTOR_SIZE / dir_entry_size);       // 每扇区最大的目录项数目
   struct dir_entry* dir_e = (struct dir_entry*)io_buf;
   struct dir_entry* dir_entry_found = NULL;
   uint8_t dir_entry_idx, dir_entry_cnt;
   bool is_dir_first_block = false;     // 目录的第1个块

   /* 遍历所有块,寻找目录项 */
   block_idx = 0;
   while (block_idx < 140) {
      is_dir_first_block = false;
      if (all_blocks[block_idx] == 0) {
	 block_idx++;
	 continue;
      }
      dir_entry_idx = dir_entry_cnt = 0;
      memset(io_buf, 0, SECTOR_SIZE);
      /* 读取扇区,获得目录项 */
      ide_read(part->my_disk, all_blocks[block_idx], io_buf, 1);

      /* 遍历所有的目录项,统计该扇区的目录项数量及是否有待删除的目录项 */
      while (dir_entry_idx < dir_entrys_per_sec) {
	 if ((dir_e + dir_entry_idx)->f_type != FT_UNKNOWN) {
	    if (!strcmp((dir_e + dir_entry_idx)->filename, ".")) {
	       is_dir_first_block = true;
	    } else if (strcmp((dir_e + dir_entry_idx)->filename, ".") &&
	       strcmp((dir_e + dir_entry_idx)->filename, "..")) {
	       dir_entry_cnt++;     // 统计此扇区内的目录项个数,用来判断删除目录项后是否回收该扇区
	       if ((dir_e + dir_entry_idx)->i_no == inode_no) {	  // 如果找到此i结点,就将其记录在dir_entry_found
		  ASSERT(dir_entry_found == NULL);  // 确保目录中只有一个编号为inode_no的inode,找到一次后dir_entry_found就不再是NULL
		  dir_entry_found = dir_e + dir_entry_idx;
		  /* 找到后也继续遍历,统计总共的目录项数 */
	       }
	    }
	 }
	 dir_entry_idx++;
      }

      /* 若此扇区未找到该目录项,继续在下个扇区中找 */
      if (dir_entry_found == NULL) {
	 block_idx++;
	 continue;
      }

   /* 在此扇区中找到目录项后,清除该目录项并判断是否回收扇区,随后退出循环直接返回 */
      ASSERT(dir_entry_cnt >= 1);
    /* 除目录第1个扇区外,若该扇区上只有该目录项自己,则将整个扇区回收 */
      if (dir_entry_cnt == 1 && !is_dir_first_block) {
	 /* a 在块位图中回收该块 */
	 uint32_t block_bitmap_idx = all_blocks[block_idx] - part->sb->data_start_lba;
	 bitmap_set(&part->block_bitmap, block_bitmap_idx, 0);
	 bitmap_sync(cur_part, block_bitmap_idx, BLOCK_BITMAP);

	 /* b 将块地址从数组i_sectors或索引表中去掉 */
	 if (block_idx < 12) {
	    dir_inode->i_sectors[block_idx] = 0;
	 } else {    // 在一级间接索引表中擦除该间接块地址
	    /*先判断一级间接索引表中间接块的数量,如果仅有这1个间接块,连同间接索引表所在的块一同回收 */
	    uint32_t indirect_blocks = 0;
	    uint32_t indirect_block_idx = 12;
	    while (indirect_block_idx < 140) {
	       if (all_blocks[indirect_block_idx] != 0) {
		  indirect_blocks++;
	       }
	    }
	    ASSERT(indirect_blocks >= 1);  // 包括当前间接块

	    if (indirect_blocks > 1) {	  // 间接索引表中还包括其它间接块,仅在索引表中擦除当前这个间接块地址
	       all_blocks[block_idx] = 0;
	       ide_write(part->my_disk, dir_inode->i_sectors[12], all_blocks + 12, 1);
	    } else {	// 间接索引表中就当前这1个间接块,直接把间接索引表所在的块回收,然后擦除间接索引表块地址
	       /* 回收间接索引表所在的块 */
	       block_bitmap_idx = dir_inode->i_sectors[12] - part->sb->data_start_lba;
	       bitmap_set(&part->block_bitmap, block_bitmap_idx, 0);
	       bitmap_sync(cur_part, block_bitmap_idx, BLOCK_BITMAP);

	       /* 将间接索引表地址清0 */
	       dir_inode->i_sectors[12] = 0;
	    }
	 }
      } else { // 仅将该目录项清空
	 memset(dir_entry_found, 0, dir_entry_size);
	 ide_write(part->my_disk, all_blocks[block_idx], io_buf, 1);
      }

   /* 更新i结点信息并同步到硬盘 */
      ASSERT(dir_inode->i_size >= dir_entry_size);
      dir_inode->i_size -= dir_entry_size;
      memset(io_buf, 0, SECTOR_SIZE * 2);
      inode_sync(part, dir_inode, io_buf);

      return true;
   }
   /* 所有块中未找到则返回false,若出现这种情况应该是serarch_file出错了 */
   return false;
}

fs/fs.c新增

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
/* 删除文件(非目录),成功返回0,失败返回-1 */
int32_t sys_unlink(const char* pathname) {
   ASSERT(strlen(pathname) < MAX_PATH_LEN);

   /* 先检查待删除的文件是否存在 */
   struct path_search_record searched_record;
   memset(&searched_record, 0, sizeof(struct path_search_record));
   int inode_no = search_file(pathname, &searched_record);
   ASSERT(inode_no != 0);
   if (inode_no == -1) {
      printk("file %s not found!\n", pathname);
      dir_close(searched_record.parent_dir);
      return -1;
   }
   if (searched_record.file_type == FT_DIRECTORY) {
      printk("can`t delete a direcotry with unlink(), use rmdir() to instead\n");
      dir_close(searched_record.parent_dir);
      return -1;
   }

   /* 检查是否在已打开文件列表(文件表)中 */
   uint32_t file_idx = 0;
   while (file_idx < MAX_FILE_OPEN) {
      if (file_table[file_idx].fd_inode != NULL && (uint32_t)inode_no == file_table[file_idx].fd_inode->i_no) {
	 break;
      }
      file_idx++;
   }
   if (file_idx < MAX_FILE_OPEN) {
      dir_close(searched_record.parent_dir);
      printk("file %s is in use, not allow to delete!\n", pathname);
      return -1;
   }
   ASSERT(file_idx == MAX_FILE_OPEN);

   /* 为delete_dir_entry申请缓冲区 */
   void* io_buf = sys_malloc(SECTOR_SIZE + SECTOR_SIZE);
   if (io_buf == NULL) {
      dir_close(searched_record.parent_dir);
      printk("sys_unlink: malloc for io_buf failed\n");
      return -1;
   }

   struct dir* parent_dir = searched_record.parent_dir;
   delete_dir_entry(cur_part, parent_dir, inode_no, io_buf);
   inode_release(cur_part, inode_no);
   sys_free(io_buf);
   dir_close(searched_record.parent_dir);
   return 0;   // 成功删除文件
}

kernel/main.c修改

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
#include "print.h"
#include "init.h"
#include "debug.h"
#include "string.h"
#include "memory.h"
#include "../thread/thread.h"
#include "interrupt.h"
#include "../device/console.h"
#include "../device/ioqueue.h"
#include "../device/keyboard.h"
#include "../userprog/process.h"
#include "../lib/user/syscall.h"
#include "../userprog/syscall-init.h"
#include "../lib/stdio.h"
#include "../lib/kernel/stdio-kernel.h"
#include "../fs/fs.h"
#include "../fs/file.h"

int main(void) {
	put_str("I am kernel\n");
	init_all();

	intr_enable();

	printf("/file1 delete %s!\n", sys_unlink("/file1") == 0 ? "done" : "fall");
	while(1);
   	return 0;
}

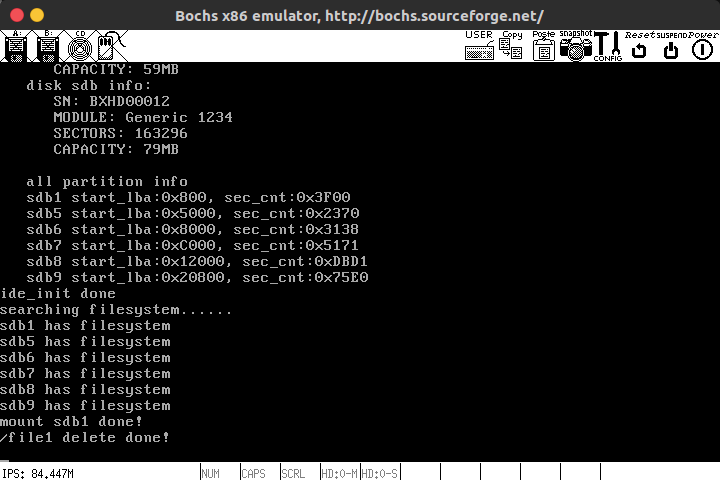

运行结果

图为bochs运行界面

创建目录

fs/fs.c新增

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
/* 创建目录pathname,成功返回0,失败返回-1 */
int32_t sys_mkdir(const char* pathname) {
   uint8_t rollback_step = 0;	       // 用于操作失败时回滚各资源状态
   void* io_buf = sys_malloc(SECTOR_SIZE * 2);
   if (io_buf == NULL) {
      printk("sys_mkdir: sys_malloc for io_buf failed\n");
      return -1;
   }

   struct path_search_record searched_record;
   memset(&searched_record, 0, sizeof(struct path_search_record));
   int inode_no = -1;
   inode_no = search_file(pathname, &searched_record);
   if (inode_no != -1) {      // 如果找到了同名目录或文件,失败返回
      printk("sys_mkdir: file or directory %s exist!\n", pathname);
      rollback_step = 1;
      goto rollback;
   } else {	     // 若未找到,也要判断是在最终目录没找到还是某个中间目录不存在
      uint32_t pathname_depth = path_depth_cnt((char*)pathname);
      uint32_t path_searched_depth = path_depth_cnt(searched_record.searched_path);
      /* 先判断是否把pathname的各层目录都访问到了,即是否在某个中间目录就失败了 */
      if (pathname_depth != path_searched_depth) {   // 说明并没有访问到全部的路径,某个中间目录是不存在的
	 printk("sys_mkdir: can`t access %s, subpath %s is`t exist\n", pathname, searched_record.searched_path);
	 rollback_step = 1;
	 goto rollback;
      }
   }

   struct dir* parent_dir = searched_record.parent_dir;
   /* 目录名称后可能会有字符'/',所以最好直接用searched_record.searched_path,无'/' */
   char* dirname = strrchr(searched_record.searched_path, '/') + 1;

   inode_no = inode_bitmap_alloc(cur_part);
   if (inode_no == -1) {
      printk("sys_mkdir: allocate inode failed\n");
      rollback_step = 1;
      goto rollback;
   }

   struct inode new_dir_inode;
   inode_init(inode_no, &new_dir_inode);	    // 初始化i结点

   uint32_t block_bitmap_idx = 0;     // 用来记录block对应于block_bitmap中的索引
   int32_t block_lba = -1;
/* 为目录分配一个块,用来写入目录.和.. */
   block_lba = block_bitmap_alloc(cur_part);
   if (block_lba == -1) {
      printk("sys_mkdir: block_bitmap_alloc for create directory failed\n");
      rollback_step = 2;
      goto rollback;
   }
   new_dir_inode.i_sectors[0] = block_lba;
   /* 每分配一个块就将位图同步到硬盘 */
   block_bitmap_idx = block_lba - cur_part->sb->data_start_lba;
   ASSERT(block_bitmap_idx != 0);
   bitmap_sync(cur_part, block_bitmap_idx, BLOCK_BITMAP);

   /* 将当前目录的目录项'.'和'..'写入目录 */
   memset(io_buf, 0, SECTOR_SIZE * 2);	 // 清空io_buf
   struct dir_entry* p_de = (struct dir_entry*)io_buf;

   /* 初始化当前目录"." */
   memcpy(p_de->filename, ".", 1);
   p_de->i_no = inode_no ;
   p_de->f_type = FT_DIRECTORY;

   p_de++;
   /* 初始化当前目录".." */
   memcpy(p_de->filename, "..", 2);
   p_de->i_no = parent_dir->inode->i_no;
   p_de->f_type = FT_DIRECTORY;
   ide_write(cur_part->my_disk, new_dir_inode.i_sectors[0], io_buf, 1);

   new_dir_inode.i_size = 2 * cur_part->sb->dir_entry_size;

   /* 在父目录中添加自己的目录项 */
   struct dir_entry new_dir_entry;
   memset(&new_dir_entry, 0, sizeof(struct dir_entry));
   create_dir_entry(dirname, inode_no, FT_DIRECTORY, &new_dir_entry);
   memset(io_buf, 0, SECTOR_SIZE * 2);	 // 清空io_buf
   if (!sync_dir_entry(parent_dir, &new_dir_entry, io_buf)) {	  // sync_dir_entry中将block_bitmap通过bitmap_sync同步到硬盘
      printk("sys_mkdir: sync_dir_entry to disk failed!\n");
      rollback_step = 2;
      goto rollback;
   }

   /* 父目录的inode同步到硬盘 */
   memset(io_buf, 0, SECTOR_SIZE * 2);
   inode_sync(cur_part, parent_dir->inode, io_buf);

   /* 将新创建目录的inode同步到硬盘 */
   memset(io_buf, 0, SECTOR_SIZE * 2);
   inode_sync(cur_part, &new_dir_inode, io_buf);

   /* 将inode位图同步到硬盘 */
   bitmap_sync(cur_part, inode_no, INODE_BITMAP);

   sys_free(io_buf);

   /* 关闭所创建目录的父目录 */
   dir_close(searched_record.parent_dir);
   return 0;

/*创建文件或目录需要创建相关的多个资源,若某步失败则会执行到下面的回滚步骤 */
rollback:	     // 因为某步骤操作失败而回滚
   switch (rollback_step) {
      case 2:
	 bitmap_set(&cur_part->inode_bitmap, inode_no, 0);	 // 如果新文件的inode创建失败,之前位图中分配的inode_no也要恢复
      case 1:
	 /* 关闭所创建目录的父目录 */
	 dir_close(searched_record.parent_dir);
	 break;
   }
   sys_free(io_buf);
   return -1;
}

kernel/main.c修改

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
#include "print.h"
#include "init.h"
#include "debug.h"
#include "string.h"
#include "memory.h"
#include "../thread/thread.h"
#include "interrupt.h"
#include "../device/console.h"
#include "../device/ioqueue.h"
#include "../device/keyboard.h"
#include "../userprog/process.h"
#include "../lib/user/syscall.h"
#include "../userprog/syscall-init.h"
#include "../lib/stdio.h"
#include "../lib/kernel/stdio-kernel.h"
#include "../fs/fs.h"
#include "../fs/file.h"

int main(void) {
	put_str("I am kernel\n");
	init_all();

	intr_enable();

	printf("/dir1/subdir1 create %s!\n",\
	sys_mkdir("/dir1/subdir1") == 0 ? "done" : "fall");

	printf("/dir1 create %s!\n", sys_mkdir("/dir1")== 0 ? "done" : "fall");

	printf("now /dir1/subdir1 create %s\n", \
	sys_mkdir("/dir1/subdir1") == 0 ? "done": "fall");

	int fd = sys_open("/dir1/subdir1/file2", O_CREAT|O_RDWR);
	if(fd != -1){
		printf("dir1/subdir1/file2/ create done!\n");
		sys_write(fd, "Catch me if you can!\n", 21);
		sys_lseek(fd, 0, SEEK_SET);
		char buf[32] = {0};
		sys_read(fd, buf, 21);
		printf("/dir1/subdir1/file2 says:\n%s", buf);
		sys_close(fd);
	}
	while(1);
   	return 0;
}

运行结果

图为bochs运行界面

遍历目录

fs/fs.c新增

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
/* 目录打开成功后返回目录指针,失败返回NULL */
struct dir* sys_opendir(const char* name) {
   ASSERT(strlen(name) < MAX_PATH_LEN);
   /* 如果是根目录'/',直接返回&root_dir */
   if (name[0] == '/' && (name[1] == 0 || name[0] == '.')) {
      return &root_dir;
   }

   /* 先检查待打开的目录是否存在 */
   struct path_search_record searched_record;
   memset(&searched_record, 0, sizeof(struct path_search_record));
   int inode_no = search_file(name, &searched_record);
   struct dir* ret = NULL;
   if (inode_no == -1) {	 // 如果找不到目录,提示不存在的路径
      printk("In %s, sub path %s not exist\n", name, searched_record.searched_path);
   } else {
      if (searched_record.file_type == FT_REGULAR) {
	 printk("%s is regular file!\n", name);
      } else if (searched_record.file_type == FT_DIRECTORY) {
	 ret = dir_open(cur_part, inode_no);
      }
   }
   dir_close(searched_record.parent_dir);
   return ret;
}

/* 成功关闭目录dir返回0,失败返回-1 */
int32_t sys_closedir(struct dir* dir) {
   int32_t ret = -1;
   if (dir != NULL) {
      dir_close(dir);
      ret = 0;
   }
   return ret;
}

kernel/main.c修改

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
#include "print.h"
#include "init.h"
#include "debug.h"
#include "string.h"
#include "memory.h"
#include "../thread/thread.h"
#include "interrupt.h"
#include "../device/console.h"
#include "../device/ioqueue.h"
#include "../device/keyboard.h"
#include "../userprog/process.h"
#include "../lib/user/syscall.h"
#include "../userprog/syscall-init.h"
#include "../lib/stdio.h"
#include "../lib/kernel/stdio-kernel.h"
#include "../fs/fs.h"
#include "../fs/file.h"

int main(void) {
	put_str("I am kernel\n");
	init_all();

	intr_enable();

	struct dir* p_dir = sys_opendir("/dir1/subdir1");
	if (p_dir){
		printf("/dir1/subdir1 open done!\n");
		if(sys_closedir(p_dir) == 0){
			printf("/dir1/subdir1 close done!\n");
		}else{
			printf("/dir1/subdir1 close fail!\n");
		}
	}else{
		printf("/dir1/subdir1 open fail!\n");
	}

	while(1);
   	return 0;
}

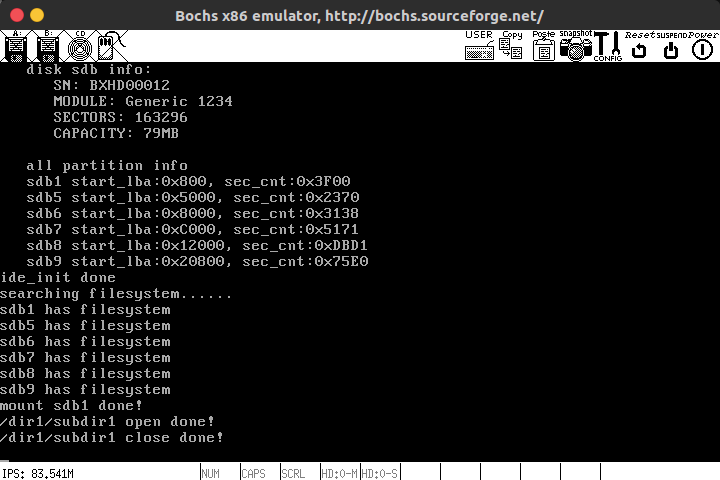

运行结果

图为bochs运行界面

fs/dir.c新增

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
/* 读取目录,成功返回1个目录项,失败返回NULL */
struct dir_entry* dir_read(struct dir* dir) {
   struct dir_entry* dir_e = (struct dir_entry*)dir->dir_buf;
   struct inode* dir_inode = dir->inode;
   uint32_t all_blocks[140] = {0}, block_cnt = 12;
   uint32_t block_idx = 0, dir_entry_idx = 0;
   while (block_idx < 12) {
      all_blocks[block_idx] = dir_inode->i_sectors[block_idx];
      block_idx++;
   }
   if (dir_inode->i_sectors[12] != 0) {	     // 若含有一级间接块表
      ide_read(cur_part->my_disk, dir_inode->i_sectors[12], all_blocks + 12, 1);
      block_cnt = 140;
   }
   block_idx = 0;

   uint32_t cur_dir_entry_pos = 0;	  // 当前目录项的偏移,此项用来判断是否是之前已经返回过的目录项
   uint32_t dir_entry_size = cur_part->sb->dir_entry_size;
   uint32_t dir_entrys_per_sec = SECTOR_SIZE / dir_entry_size;	 // 1扇区内可容纳的目录项个数
   /* 因为此目录内可能删除了某些文件或子目录,所以要遍历所有块 */
   while (block_idx < block_cnt) {
      if (dir->dir_pos >= dir_inode->i_size) {
	 return NULL;
      }
      if (all_blocks[block_idx] == 0) {     // 如果此块地址为0,即空块,继续读出下一块
	 block_idx++;
	 continue;
      }
      memset(dir_e, 0, SECTOR_SIZE);
      ide_read(cur_part->my_disk, all_blocks[block_idx], dir_e, 1);
      dir_entry_idx = 0;
      /* 遍历扇区内所有目录项 */
      while (dir_entry_idx < dir_entrys_per_sec) {
	 if ((dir_e + dir_entry_idx)->f_type) {	 // 如果f_type不等于0,即不等于FT_UNKNOWN
	    /* 判断是不是最新的目录项,避免返回曾经已经返回过的目录项 */
	    if (cur_dir_entry_pos < dir->dir_pos) {
	       cur_dir_entry_pos += dir_entry_size;
	       dir_entry_idx++;
	       continue;
	    }
	    ASSERT(cur_dir_entry_pos == dir->dir_pos);
	    dir->dir_pos += dir_entry_size;	      // 更新为新位置,即下一个返回的目录项地址
	    return dir_e + dir_entry_idx;
	 }
	 dir_entry_idx++;
      }
      block_idx++;
   }
   return NULL;
}

fs/fs.c新增

1
2
3
4
5
6
7
8
9
10
/* 读取目录dir的1个目录项,成功后返回其目录项地址,到目录尾时或出错时返回NULL */
struct dir_entry* sys_readdir(struct dir* dir) {
   ASSERT(dir != NULL);
   return dir_read(dir);
}

/* 把目录dir的指针dir_pos置0 */
void sys_rewinddir(struct dir* dir) {
   dir->dir_pos = 0;
}

kernel/main.c修改

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
#include "print.h"
#include "init.h"
#include "debug.h"
#include "string.h"
#include "memory.h"
#include "../thread/thread.h"
#include "interrupt.h"
#include "../device/console.h"
#include "../device/ioqueue.h"
#include "../device/keyboard.h"
#include "../userprog/process.h"
#include "../lib/user/syscall.h"
#include "../userprog/syscall-init.h"
#include "../lib/stdio.h"
#include "../lib/kernel/stdio-kernel.h"
#include "../fs/fs.h"
#include "../fs/file.h"

int main(void) {
	put_str("I am kernel\n");
	init_all();
	intr_enable();
	struct dir* p_dir = sys_opendir("/dir1/subdir1");
	if (p_dir){
		printf("/dir1/subdir1 open done!\ncontent:\n");
		char* type =NULL;
		struct dir_entry* dir_e = NULL;
		while((dir_e = sys_readdir(p_dir))){
			if(dir_e->f_type = FT_REGULAR){
				type = "regular";
			}else{
				type = "directory";
			}
			printf("	%s   %s\n",type, dir_e->filename);

		}
		if(sys_closedir(p_dir) == 0){
			printf("/dir1/subdir1 close done!\n");
		}else{
			printf("/dir1/subdir1 close fail!\n");
		}

	}else{
		printf("/dir1/subdir1 open fail!\n");
	}

	while(1);
   	return 0;
}

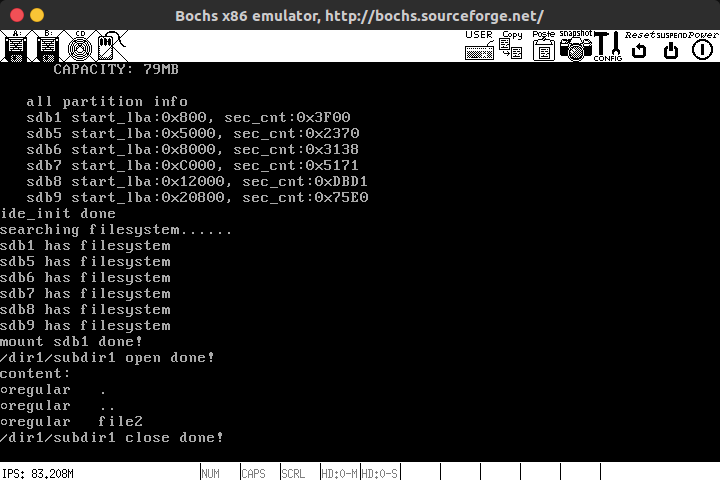

运行结果

图为bochs运行界面

删除目录

fs/dir.c新增

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
/* 判断目录是否为空 */
bool dir_is_empty(struct dir* dir) {
   struct inode* dir_inode = dir->inode;
   /* 若目录下只有.和..这两个目录项则目录为空 */
   return (dir_inode->i_size == cur_part->sb->dir_entry_size * 2);
}

/* 在父目录parent_dir中删除child_dir */
int32_t dir_remove(struct dir* parent_dir, struct dir* child_dir) {
   struct inode* child_dir_inode  = child_dir->inode;
   /* 空目录只在inode->i_sectors[0]中有扇区,其它扇区都应该为空 */
   int32_t block_idx = 1;
   while (block_idx < 13) {
      ASSERT(child_dir_inode->i_sectors[block_idx] == 0);
      block_idx++;
   }
   void* io_buf = sys_malloc(SECTOR_SIZE * 2);
   if (io_buf == NULL) {
      printk("dir_remove: malloc for io_buf failed\n");
      return -1;
   }

   /* 在父目录parent_dir中删除子目录child_dir对应的目录项 */
   delete_dir_entry(cur_part, parent_dir, child_dir_inode->i_no, io_buf);

   /* 回收inode中i_secotrs中所占用的扇区,并同步inode_bitmap和block_bitmap */
   inode_release(cur_part, child_dir_inode->i_no);
   sys_free(io_buf);
   return 0;
}

fs/fs.c新增

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
/* 删除空目录,成功时返回0,失败时返回-1*/
int32_t sys_rmdir(const char* pathname) {
   /* 先检查待删除的文件是否存在 */
   struct path_search_record searched_record;
   memset(&searched_record, 0, sizeof(struct path_search_record));
   int32_t inode_no = search_file(pathname, &searched_record);
   ASSERT(inode_no != 0);
   int32_t retval = -1;	// 默认返回值
   if (inode_no == -1) {
      printk("In %s, sub path %s not exist\n", pathname, searched_record.searched_path);
   } else {
      if (searched_record.file_type == FT_REGULAR) {
	 printk("%s is regular file!\n", pathname);
      } else {
	 struct dir* dir = dir_open(cur_part, inode_no);
	 if (!dir_is_empty(dir)) {	 // 非空目录不可删除
	    printk("dir %s is not empty, it is not allowed to delete a nonempty directory!\n", pathname);
	 } else {
	    if (!dir_remove(searched_record.parent_dir, dir)) {
	       retval = 0;
	    }
	 }
	 dir_close(dir);
      }
   }
   dir_close(searched_record.parent_dir);
   return retval;
}

kernel/main.c修改

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
#include "print.h"
#include "init.h"
#include "debug.h"
#include "string.h"
#include "memory.h"
#include "../thread/thread.h"
#include "interrupt.h"
#include "../device/console.h"
#include "../device/ioqueue.h"
#include "../device/keyboard.h"
#include "../userprog/process.h"
#include "../lib/user/syscall.h"
#include "../userprog/syscall-init.h"
#include "../lib/stdio.h"
#include "../lib/kernel/stdio-kernel.h"
#include "../fs/fs.h"
#include "../fs/file.h"

int main(void) {
	put_str("I am kernel\n");
	init_all();

	intr_enable();

	//sys_mkdir("/dir1/subdir1");
	//sys_open("/dir1/subdir1/file2", O_CREAT|O_RDWR);
	printf("/dir1 content before delete /dir1/subdir1:\n");
	struct dir* dir = sys_opendir("/dir1/");
	char* type =NULL;
	struct dir_entry* dir_e = NULL;
	while((dir_e = sys_readdir(dir))){
		if(dir_e->f_type = FT_REGULAR){
			type = "regular";
		}else{
			type = "directory";
		}
	printf("	%s   %s\n",type, dir_e->filename);

	}
	printf("try to delete nonempty directory /dir1/subdir1\n");
	if (sys_rmdir("/dir1/subdir1/") == -1){
		printf("sys_rmdir: /dir1/subdir1 delete fall!\n");
	}
	if (sys_unlink("/dir1/subdir1/file2") == 0){
		printf("sys_rmdir: /dir1/subdir1/file2 delete done!\n");
	}
	printf("try to delete directory /dir1/subdir1 again\n");
	if (sys_rmdir("/dir1/subdir1") == 0){
		printf("/dir1/subdir1 delete done!\n");
	}
	printf("/dir1 content after delete /dir1/subdir1:\n");

	sys_rewinddir(dir);
	while((dir_e = sys_readdir(dir))){
		if(dir_e->f_type = FT_REGULAR){
			type = "regular";
		}else{
			type = "directory";
		}
	printf("	%s   %s\n",type, dir_e->filename);

	}


	while(1);
   	return 0;
}

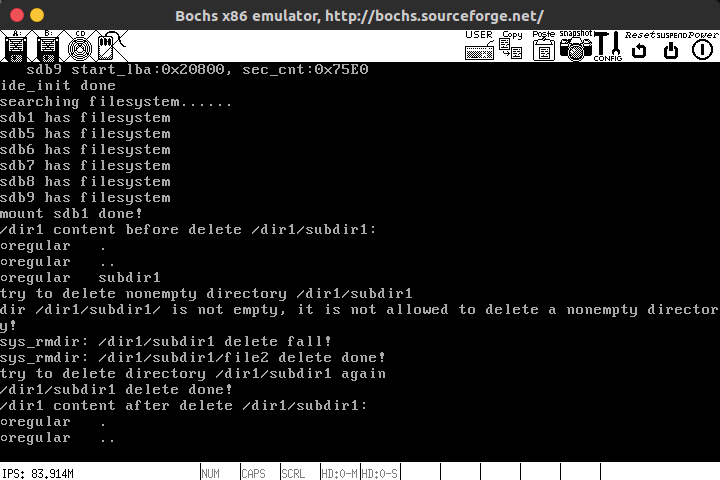

运行结果

图为bochs运行界面

任务的工作目录

fs/fs.c新增

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
/* 获得父目录的inode编号 */
static uint32_t get_parent_dir_inode_nr(uint32_t child_inode_nr, void* io_buf) {
   struct inode* child_dir_inode = inode_open(cur_part, child_inode_nr);
   /* 目录中的目录项".."中包括父目录inode编号,".."位于目录的第0块 */
   uint32_t block_lba = child_dir_inode->i_sectors[0];
   ASSERT(block_lba >= cur_part->sb->data_start_lba);
   inode_close(child_dir_inode);
   ide_read(cur_part->my_disk, block_lba, io_buf, 1);
   struct dir_entry* dir_e = (struct dir_entry*)io_buf;
   /* 第0个目录项是".",第1个目录项是".." */
   ASSERT(dir_e[1].i_no < 4096 && dir_e[1].f_type == FT_DIRECTORY);
   return dir_e[1].i_no;      // 返回..即父目录的inode编号
}

/* 在inode编号为p_inode_nr的目录中查找inode编号为c_inode_nr的子目录的名字,
 * 将名字存入缓冲区path.成功返回0,失败返-1 */
static int get_child_dir_name(uint32_t p_inode_nr, uint32_t c_inode_nr, char* path, void* io_buf) {
   struct inode* parent_dir_inode = inode_open(cur_part, p_inode_nr);
   /* 填充all_blocks,将该目录的所占扇区地址全部写入all_blocks */
   uint8_t block_idx = 0;
   uint32_t all_blocks[140] = {0}, block_cnt = 12;
   while (block_idx < 12) {
      all_blocks[block_idx] = parent_dir_inode->i_sectors[block_idx];
      block_idx++;
   }
   if (parent_dir_inode->i_sectors[12]) {	// 若包含了一级间接块表,将共读入all_blocks.
      ide_read(cur_part->my_disk, parent_dir_inode->i_sectors[12], all_blocks + 12, 1);
      block_cnt = 140;
   }
   inode_close(parent_dir_inode);

   struct dir_entry* dir_e = (struct dir_entry*)io_buf;
   uint32_t dir_entry_size = cur_part->sb->dir_entry_size;
   uint32_t dir_entrys_per_sec = (512 / dir_entry_size);
   block_idx = 0;
  /* 遍历所有块 */
   while(block_idx < block_cnt) {
      if(all_blocks[block_idx]) {      // 如果相应块不为空则读入相应块
	 ide_read(cur_part->my_disk, all_blocks[block_idx], io_buf, 1);
	 uint8_t dir_e_idx = 0;
	 /* 遍历每个目录项 */
	 while(dir_e_idx < dir_entrys_per_sec) {
	    if ((dir_e + dir_e_idx)->i_no == c_inode_nr) {
	       strcat(path, "/");
	       strcat(path, (dir_e + dir_e_idx)->filename);
	       return 0;
	    }
	    dir_e_idx++;
	 }
      }
      block_idx++;
   }
   return -1;
}

/* 把当前工作目录绝对路径写入buf, size是buf的大小.
 当buf为NULL时,由操作系统分配存储工作路径的空间并返回地址
 失败则返回NULL */
char* sys_getcwd(char* buf, uint32_t size) {
   /* 确保buf不为空,若用户进程提供的buf为NULL,
   系统调用getcwd中要为用户进程通过malloc分配内存 */
   ASSERT(buf != NULL);
   void* io_buf = sys_malloc(SECTOR_SIZE);
   if (io_buf == NULL) {
      return NULL;
   }
   struct task_struct* cur_thread = running_thread();
   int32_t parent_inode_nr = 0;
   int32_t child_inode_nr = cur_thread->cwd_inode_nr;
   ASSERT(child_inode_nr >= 0 && child_inode_nr < 4096);      // 最大支持4096个inode
   /* 若当前目录是根目录,直接返回'/' */
   if (child_inode_nr == 0) {
      buf[0] = '/';
      buf[1] = 0;
      sys_free(io_buf);
      return buf;
   }

   memset(buf, 0, size);
   char full_path_reverse[MAX_PATH_LEN] = {0};	  // 用来做全路径缓冲区

   /* 从下往上逐层找父目录,直到找到根目录为止.
    * 当child_inode_nr为根目录的inode编号(0)时停止,
    * 即已经查看完根目录中的目录项 */
   while ((child_inode_nr)) {
      parent_inode_nr = get_parent_dir_inode_nr(child_inode_nr, io_buf);
      if (get_child_dir_name(parent_inode_nr, child_inode_nr, full_path_reverse, io_buf) == -1) {	  // 或未找到名字,失败退出
	 sys_free(io_buf);
	 return NULL;
      }
      child_inode_nr = parent_inode_nr;
   }
   ASSERT(strlen(full_path_reverse) <= size);
/* 至此full_path_reverse中的路径是反着的,
 * 即子目录在前(左),父目录在后(右) ,
 * 现将full_path_reverse中的路径反置 */
   char* last_slash;	// 用于记录字符串中最后一个斜杠地址
   while ((last_slash = strrchr(full_path_reverse, '/'))) {
      uint16_t len = strlen(buf);
      strcpy(buf + len, last_slash);
      /* 在full_path_reverse中添加结束字符,做为下一次执行strcpy中last_slash的边界 */
      *last_slash = 0;
   }
   sys_free(io_buf);
   return buf;
}

/* 更改当前工作目录为绝对路径path,成功则返回0,失败返回-1 */
int32_t sys_chdir(const char* path) {
   int32_t ret = -1;
   struct path_search_record searched_record;
   memset(&searched_record, 0, sizeof(struct path_search_record));
   int inode_no = search_file(path, &searched_record);
   if (inode_no != -1) {
      if (searched_record.file_type == FT_DIRECTORY) {
	 running_thread()->cwd_inode_nr = inode_no;
	 ret = 0;
      } else {
	 printk("sys_chdir: %s is regular file or other!\n", path);
      }
   }
   dir_close(searched_record.parent_dir);
   return ret;
}

thread/thread.h修改

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
/* 进程或线程的pcb,程序控制块 */
struct task_struct
{
   uint32_t* self_kstack;	 // 各内核线程都用自己的内核栈
   pid_t pid;
   enum task_status status;
   char name[TASK_NAME_LEN];
   uint8_t priority;
   uint8_t ticks;	   // 每次在处理器上执行的时间嘀嗒数
/* 此任务自上cpu运行后至今占用了多少cpu嘀嗒数,
 * 也就是此任务执行了多久*/
   uint32_t elapsed_ticks;
/* general_tag的作用是用于线程在一般的队列中的结点 */
   struct list_elem general_tag;
/* all_list_tag的作用是用于线程队列thread_all_list中的结点 */
   struct list_elem all_list_tag;
   uint32_t* pgdir;              // 进程自己页表的虚拟地址
   struct virtual_addr userprog_vaddr;   // 用户进程的虚拟地址
   struct mem_block_desc u_block_desc[DESC_CNT];   // 用户进程内存块描述符
   uint32_t stack_magic;	 // 用这串数字做栈的边界标记,用于检测栈的溢出
   int32_t fd_table[MAX_FILES_OPEN_PER_PROC];	// 已打开文件数组
   uint32_t cwd_inode_nr;	//进程所在工作目录inode的编号
};

thread/thread.c修改

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
/* 初始化线程基本信息 */
void init_thread(struct task_struct* pthread, char* name, int prio)
{
	memset(pthread, 0, sizeof(*pthread));
   	pthread->pid = allocate_pid();
   	strcpy(pthread->name, name);

	if (pthread == main_thread)
	{
	/* 由于把main函数也封装成一个线程,并且它一直是运行的,故将其直接设为TASK_RUNNING */
		pthread->status = TASK_RUNNING;
	}
	else
	{
		pthread->status = TASK_READY;
	}

	/* self_kstack是线程自己在内核态下使用的栈顶地址 */
	pthread->self_kstack = (uint32_t*)((uint32_t)pthread + PG_SIZE);
	pthread->priority = prio;
	pthread->ticks = prio;
	pthread->elapsed_ticks = 0;
	pthread->pgdir = NULL;
	pthread->cwd_inode_nr = 0; 		//以根目录为默认的工作路径
	pthread->stack_magic = 0x19870916;	  // 自定义的魔数
	/* 标准输入输出先空出来 */
	pthread->fd_table[0] = 0;
	pthread->fd_table[1] = 1;
	pthread->fd_table[2] = 2;
	/* 其余的全置为-1 */
	uint8_t fd_idx = 3;
	while (fd_idx < MAX_FILES_OPEN_PER_PROC) {
		pthread->fd_table[fd_idx] = -1;
		fd_idx++;
	}

}

kernel/main.c修改

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
#include "print.h"
#include "init.h"
#include "debug.h"
#include "string.h"
#include "memory.h"
#include "../thread/thread.h"
#include "interrupt.h"
#include "../device/console.h"
#include "../device/ioqueue.h"
#include "../device/keyboard.h"
#include "../userprog/process.h"
#include "../lib/user/syscall.h"
#include "../userprog/syscall-init.h"
#include "../lib/stdio.h"
#include "../lib/kernel/stdio-kernel.h"
#include "../fs/fs.h"
#include "../fs/file.h"

int main(void) {
   	put_str("I am kernel\n");
   	init_all();
	char cwd_buf[32]= {0};
	sys_getcwd(cwd_buf, 32);
	printf("cwd:%s\n", cwd_buf);
	sys_chdir("/dir1/");
	printf("change cwd now\n");
	sys_getcwd(cwd_buf, 12);
	printf("cwd:%s\n", cwd_buf);

	while(1);
   	return 0;
}

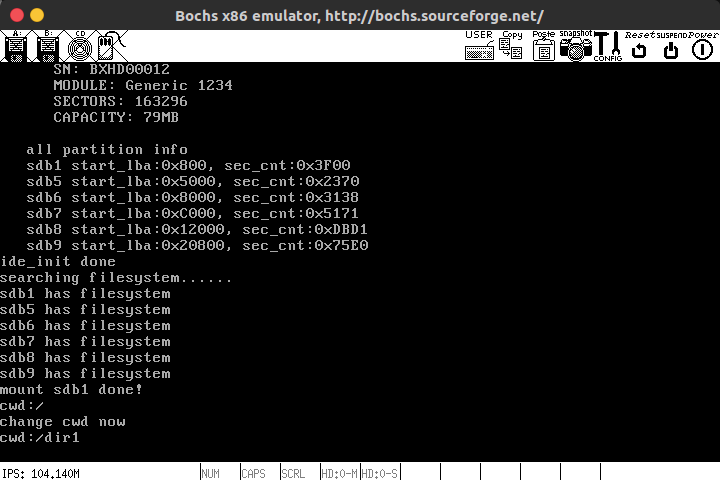

运行结果

图为bochs运行界面

获得文件属性

fs/fs.h新增

1
2
3
4
5
6
/* 文件属性结构体 */
struct stat {
   uint32_t st_ino;		 // inode编号
   uint32_t st_size;		 // 尺寸
   enum file_types st_filetype;	 // 文件类型
};

fs/fs.c新增

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
/* 在buf中填充文件结构相关信息,成功时返回0,失败返回-1 */
int32_t sys_stat(const char* path, struct stat* buf) {
   /* 若直接查看根目录'/' */
   if (!strcmp(path, "/") || !strcmp(path, "/.") || !strcmp(path, "/..")) {
      buf->st_filetype = FT_DIRECTORY;
      buf->st_ino = 0;
      buf->st_size = root_dir.inode->i_size;
      return 0;
   }

   int32_t ret = -1;	// 默认返回值
   struct path_search_record searched_record;
   memset(&searched_record, 0, sizeof(struct path_search_record));   // 记得初始化或清0,否则栈中信息不知道是什么
   int inode_no = search_file(path, &searched_record);
   if (inode_no != -1) {
      struct inode* obj_inode = inode_open(cur_part, inode_no);   // 只为获得文件大小
      buf->st_size = obj_inode->i_size;
      inode_close(obj_inode);
      buf->st_filetype = searched_record.file_type;
      buf->st_ino = inode_no;
      ret = 0;
   } else {
      printk("sys_stat: %s not found\n", path);
   }
   dir_close(searched_record.parent_dir);
   return ret;
}

kernel/main.c修改

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
#include "print.h"
#include "init.h"
#include "debug.h"
#include "string.h"
#include "memory.h"
#include "../thread/thread.h"
#include "interrupt.h"
#include "../device/console.h"
#include "../device/ioqueue.h"
#include "../device/keyboard.h"
#include "../userprog/process.h"
#include "../lib/user/syscall.h"
#include "../userprog/syscall-init.h"
#include "../lib/stdio.h"
#include "../lib/kernel/stdio-kernel.h"
#include "../fs/fs.h"
#include "../fs/file.h"

int main(void) {
	put_str("I am kernel\n");
	init_all();
	struct stat obj_stat;
	sys_stat("/", &obj_stat);
	printf("/'s info\n  i_no:%d\n size:%d\n  filetype:%s\n", \
	obj_stat.st_ino, obj_stat.st_size, \
	obj_stat.st_filetype == 2 ? "directory" : "regular");

	sys_stat("/dir1", &obj_stat);
	printf("//dir1's info\n  i_no:%d\n size:%d\n  filetype:%s\n", \
	obj_stat.st_ino, obj_stat.st_size, \
	obj_stat.st_filetype == 2 ? "directory" : "regular");


	while(1);
   	return 0;
}

运行结果

图为bochs运行界面

写在后面

这一章跟下来发现代码量和功能虽然较多，但是主要是一些细节的处理比较多，大体的思路是非常明确的。还差最后一章了，胜利就在眼前。
